In today’s lab we will be connecting to the GIS server (aka Osmotar), looking at how the file server works, and taking a look at ArcGIS Pro; the primary software we will be using this semester.

Housekeeping

This semester’s labs will be happening online, and recordings are available. Given the interactive nature of labs it is highly encouraged that you attend the labs in person, if you are unable to attend your section for a week please consider attending an alternate section. Additionally please remember that the labs while virtual function much the same as in-person labs, and contain a linear flow of steps. Come to virtual labs the same as you would an in-person lab, prepared to be present and interacting for the duration of the lab. We will take a short break halfway through each lab to stretch our legs or get water etc.

During Labs, you are encouraged to ask questions, and interact with the material whenever possible (if you have a question most likely there are others with the same question so please speak up).

If you are comfortable using a webcam during the labs please feel free to use it, being able to see your classmates can help the conversation to feel more natural.

If you have questions outside of lab time you can feel free to e-mail your SLI, send a private message in teams, or if it is a general question post it into a team’s channel so the entire class can benefit from answers and discussions.

Attending the Lab Remotely

We will be having a discussion via Microsoft teams, and connecting to the lab computers using Remote Desktop. The primary goal of this lab is to get everyone connected – the connection instructions are available here: https://gis.unbc.ca/support/remote-access-gis-servers/

File Storage

A description of the file system usage is available here: https://gis.unbc.ca/support/gis-filesystem/ The most important details here are to always save to your K: drive! And most data for the labs will be found on the L: drive. Data saved on the C: drive is semi-persistent and any files saved here will be periodically deleted. Many pieces of software will default to saving to the My Documents folder which is on the C: drive, care should be taken to always change to K: drive.

Opening ArcGIS Pro

This Lab will be completed primarily using ArcGIS Pro. The first time you open ArcGIS Pro (and potentially from time to time depending on automatic filesystem maintenance) ArcGIS Pro will need to be configured for licensing.

Search for ArcGIS Pro

You will see a login screen, at the bottom of this: click configure licensing options.

Set Licence Type to ‘Concurrent Use Licence’

Licence Manager to ‘gis-licence-1.gis.unbc.ca’

Add a backup, then set the backup to ‘gis-licence-2.gis.unbc.ca’

Finally select all the check boxes in the Licensed column and press OK.

And allow ArcGIS Pro to restart. (You will need to relaunch after pressing OK).

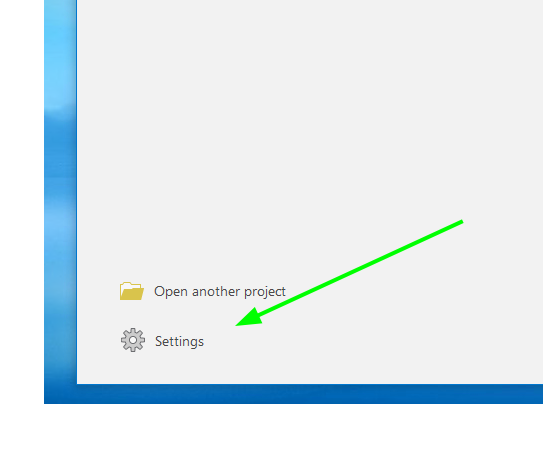

Select Settings in the lower left corner

Select Portals, Then Add Portal, and set the URL to ‘https://arc.gis.unbc.ca/portal’

Right Click on the portal you just added, set as active and sign in

Your username, is your UNBC username followed by @UNI, and then your regular UNBC password.

Use the back button in the upper right corner to close settings

Finally log in, in the upper right corner

ArcGIS Pro Basics

The Welcome Screen

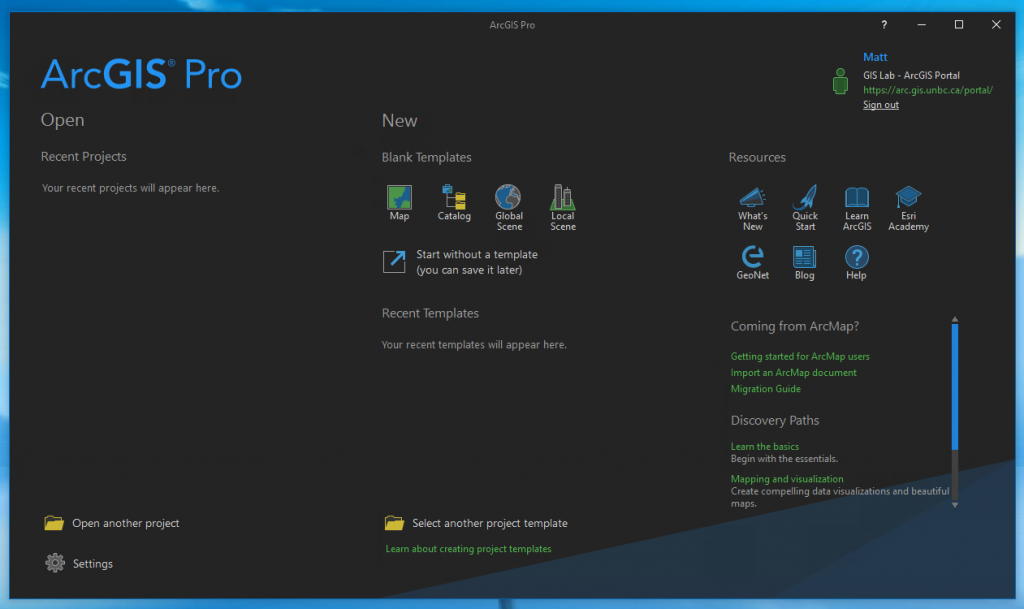

When you first open ArcGIS Pro the welcome screen will present you with a variety of options spread into 3 columns.

The left-most column is used to open existing projects either from the recent list or searching for the project by clicking the manilla folder at the bottom of the column.

The rightmost column has some learning resources, these may be useful in your project as an additional source of information.

The center column is the one we are interested in most right now. Every time we want to make a map we will create a project, and the project is created from a template. For this course, we will primarily be using the Map template, but we will also be looking at the Scene templates later in the course to allow the creation of 3D maps.

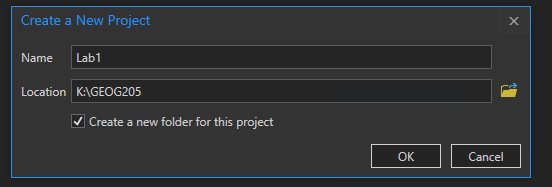

To make your first map select the map template and give it a name, as well as select where to save the project (K: drive!). Inside of your K drive make a folder for geog205, we will be saving all our labs in here and make sure to check the Create a new folder for this project.

File Naming

Avoid using spaces in your file, folder and project names. While technically allowed spaces can create issues for some of the software in the GIS Lab, consider alternative options such as -, _, or CamelCase.

The ArcGIS Pro screen is divided into 5 primary sections.

In the middle you will see the map view, this is where all of the data we are working with will appear, and you can navigate it much the same as Google maps, using click to drag and the Scroll Wheel. You will notice that every map starts with a default Topographic Map and Hillshade, but we will be able to customize this later should we desire.

Below the map is the info bar (pink in the image above). Here we see the map scale at the left and towards the middle the coordinates of the mouse pointer.

On the right of the map is the Catalog Pane, this is also where various tools will appear as they are opened. There are 3 Tabs for accessing data here, Project, Portal, and Favorites. The project tab gives access to data in the folder you created when making the project. To add data from the L drive, right-click Folders, and Add Folder Connection, from here you will be able to select folders in the L drive to make available in your project. The two folders we will be using in this class are L:\\DATA and L:\\GEOG205.

Add L:\\DATA\pg_city_2010_lidar\UniversityAOI\Images\University_AOI_BE_15cm.tif, by dragging and dropping onto the map.

Also in the catalog pane, there is a portal tab. Inside here you can then select My Organization, and gain access to data shared on our Arc Enterprise Server. “Try adding UNBC Campus Map 2020_MIL1” to your map by dragging and dropping.

Next, we will look at the left side with the contents pane, here all the layers on the map can be seen, and are shown in the order they are drawn on the screen, currently, the photo of UNBC should be covering the LiDAR, if you want the LiDAR to be on top, simply grab it and drag it above the UNBC Campus Map in the table of contents. In the table of contents, you can use the checkboxes to turn layers on or off, organize them into groups, as well as edit information about a specific layer by right-clicking on it.

Finally, we will come to the top ‘Ribbon’ here the menus are sorted into categories of tasks, such as Analysis, Editing, and Sharing. When you have a layer selected in the Contents there will also be additional menus added to the ribbon specific to that data type. For example with the University AOI layer selected, as this is a tif file which is a type of Raster – the Raster tools will be available on the Menu.

Open the Appearance Tab and set the Transparency to 50%, you should be able to see the University campus behind the lidar.

Preparing a Map for Print

Before we can print our maps we need to make a layout, projects can contain multiple layouts, for example, if you will be printing the same map on different sizes of paper, to make a layout open the Insert menu on the ribbon, select New Layout and pick Letter (standard paper size) under the ANSI – Portrait Section. At this stage, you should have a blank canvas to work with.

Again on the insert tab, there is an option called map frame, select this and draw a box on the canvas where you would like the map to appear. And then go into contents and uncheck all the layers except the Ortho under UNBC Campus maps. You should have something that looks like this.

With the map frame selected change the display options using the tools on the right of the screen. Set the scale to a round number that provides a decent view. In this case, 1:5,000 works nicely.

You can also adjust the view manually by right clicking on the frame, and selecting activate

This will allow you to click and drag, as well as zoom on the map instide of the fram. When you have it where you would like it, click to exit back to layout view.

At this point, we have a diagram of the University but we want a map so we will add a scale bar, found in the insert ribbon.

When you add your scale bar it will most likely show up with some messy looking divisions. For most people, 0.07 KM is not a meaningful unit of distance.

Using the Element panel on the right change the units to something more suitable in this case Meters would be a good choice, and change the width of the scale bar to make it 500m long. This is starting to be more useful but at this point, we still have divisions every 62.5m which is not great. Under scale bar properties

Change the number of Divisions and Subdivisions so that the divisions represent a clean looking distance. In this case, I went with 2 divisions with 5 subdivisions, but you may find other combinations that work well. Additionally, you may notice that the labels still seem a bit off, you can change how the labels appear under the numbers section, using the Frequency Setting, as an example setting to Divisions and the first subdivision produces the following result.

If you have more than one layer it would also be appropriate to add a Legend in the same manner as the scale bar.

Finally, we will use the straight text tool to add a title as well as a Name and the date the map was last updated.

By the end of this class, we will be making much better-looking maps, but this serves as an introduction to the software we will be using.

The last thing for today is to practice submitting lab assignments in teams. In the Ribbon go to Share, and Print Layout, Set the printer to ‘Mircosoft Print to PDF’

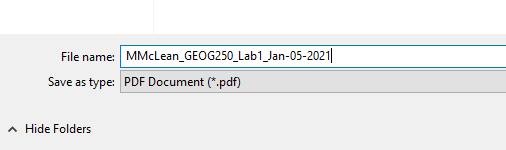

Save the PDF as <username>_GEOG205_Lab1_<date>

on Osmotar open teams in the web browser: https://www.microsoft.com/en-ca/microsoft-365/microsoft-teams/group-chat-software

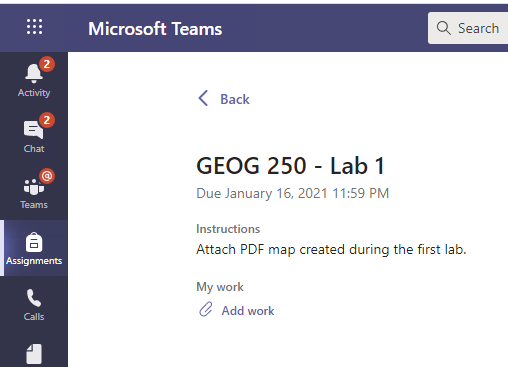

Under assignments you will find Geog 205 – Lab 1, attach the PDF using the Add work link, and Turn in the assignment

Enjoy the rest of your day!
